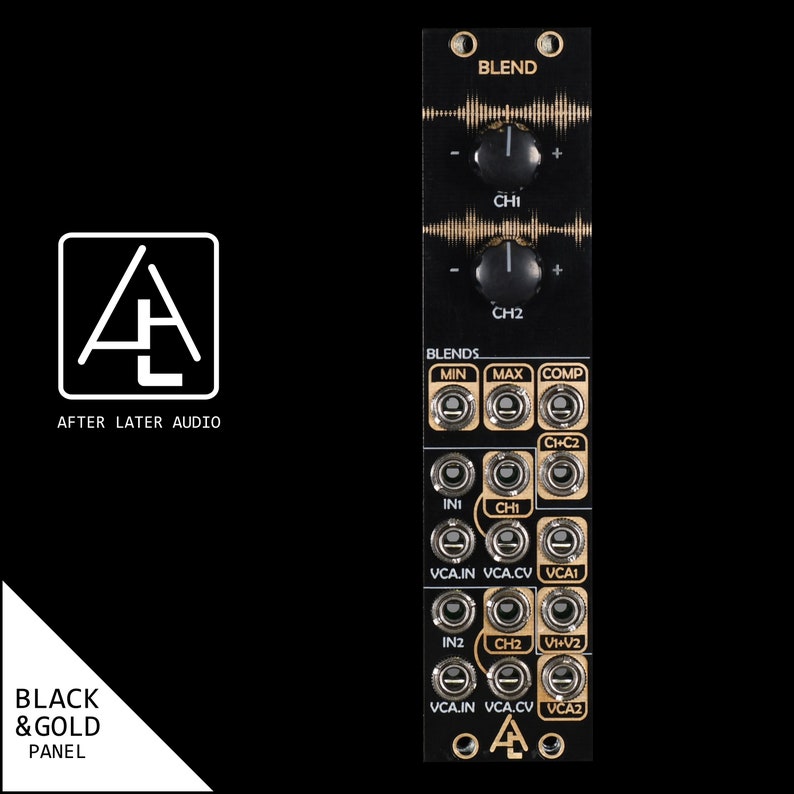

Blend - Eurorack shops Module

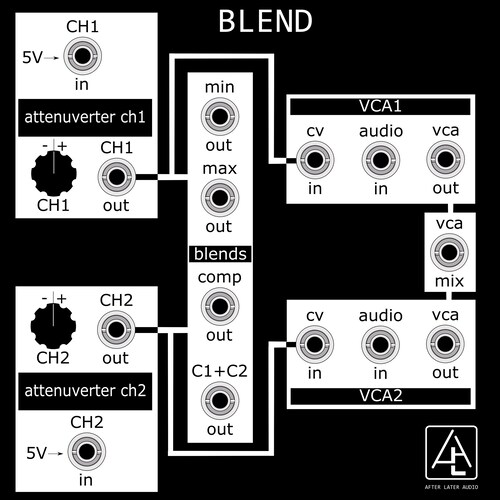

shops A CV/Audio Mixer with Dual VCA

CV sections

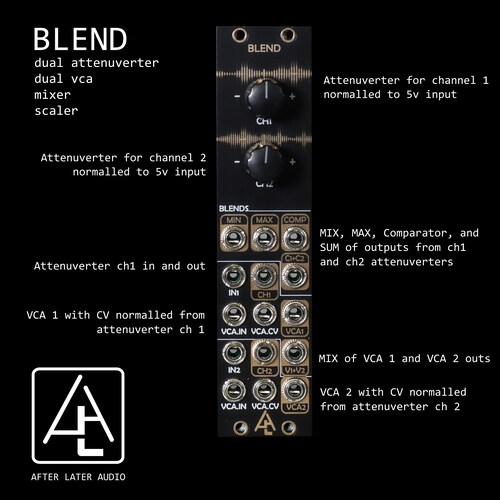

Blend has two CV sections each with:

Input (normalled to a +5V signal)
Attenuverter
Output

CV Mixer section
Blend takes the outputs of the two CV sections and offers the following:

Min output
Max output
Comparator output (level brought down to 4.5V)
Sum output
The min and max sections do not attempt to be precision min/max measurements. They will be within two diode drops of the actual min or max voltage.
VCA Sections
There are two VCA sections that are also have a mix output. The CV input for each VCA is normalled to the output of a CV section. The VCA circuits are LM13700 based so they will slightly color the sound. The response curve is nearly linear but offers a slight exponential curve.
